In today's rapidly developing global new energy and energy storage technologies, battery energy storage systems are gradually becoming a key component of energy structure transformation.
Among the many energy storage technologies, liquid-cooled battery energy storage packs are becoming the mainstream choice for large-scale energy storage power plants, industrial energy storage systems, and high-performance applications due to their high safety, high stability, and long lifespan. So, what exactly is a liquid-cooled battery energy storage pack? What are its advantages compared to traditional air-cooled energy storage methods? How does it work? This article will provide a comprehensive introduction to liquid-cooled battery energy storage packs.
1. Basic Concepts of Liquid-Cooled Battery Energy Storage Packs

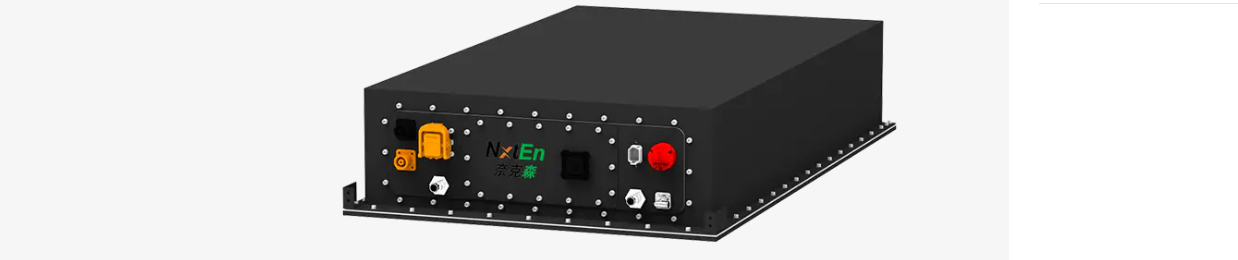

A liquid-cooled battery energy storage pack is an energy storage device that uses liquid cooling technology to control battery temperature. It uses lithium batteries (such as lithium iron phosphate batteries) as the core energy unit, integrating and packaging multiple battery modules. A circulating coolant flows through pipelines to uniformly remove heat from the battery, thereby maintaining the battery's operation within a stable and safe temperature range.
Large energy storage systems generate significant heat during charging and discharging. Excessive temperature can accelerate battery degradation, reduce efficiency, and even pose safety hazards. Liquid cooling systems, through efficient heat exchange, keep the battery within its optimal operating temperature range, resulting in safer, longer-lasting, and higher-performance operation.
A liquid-cooled energy storage pack typically consists of four main parts:
Battery Module:Composed of multiple cells connected in series and parallel, this is the energy core of the storage pack.
Cooling Plate/Pipe:Coolant circulates within the cooling plate, transferring heat from the battery through thermal conduction.
Thermal Management System:Includes a coolant pump, heat exchanger, valves, and temperature sensors, responsible for circulating the liquid and controlling temperature and flow.
Battery Management System (BMS):Monitors battery voltage, current, and temperature in real time and works in conjunction with the thermal management system to ensure safe operation of the entire system.
These structures work closely together to form a stable and efficient temperature control system.
Working Principle of Liquid-Cooled Energy Storage Packs
The core of a liquid cooling system is "liquid circulation thermal management." Its workflow is as follows:
（1）The battery generates heat during operation;
（2）The liquid cooling plate is attached to the battery module, conducting heat to the coolant through the metal thermally conductive material;
（3）The coolant flows under the drive of a pump, carrying heat to the heat exchanger;
（4）The heat exchanger dissipates the heat (exchanging it with air or the cooling system);
（5）The cooled liquid returns to the liquid cooling plate, starting a new cycle.
Through this continuous cycle, the battery temperature is precisely controlled within an ideal range, typically 20℃–35℃.
2. Advantages and Features of Liquid-Cooled Battery Energy Storage Pack
(1) Precise and Uniform Temperature Control
Compared to air-cooled systems with large temperature differences and uneven heat dissipation, liquid cooling can control the battery temperature difference within 3℃, significantly reducing the risk of thermal runaway.
(2) Improved Battery Life and Performance
Stable temperature effectively slows down battery aging, increasing battery life by 20%–40%, while also improving charge and discharge efficiency.
(3) Significantly Enhanced Safety
Liquid cooling systems can quickly dissipate heat when the battery temperature is abnormal, and simultaneously work in conjunction with the BMS for protection, making it suitable for large-scale energy storage projects.
(4) Support for High Energy Density and Large-Scale Applications
Liquid cooling has strong heat dissipation capabilities, supporting the operation of higher power and larger-scale energy storage systems, making it particularly suitable for industrial and commercial energy storage, grid peak shaving, and photovoltaic-energy storage integration scenarios.
Application Areas of Liquid-Cooled Energy Storage Packs
Liquid cooling technology is rapidly penetrating various energy storage scenarios, including:
Large-scale grid-side energy storage power stations (frequency regulation, peak shaving, and valley filling)
Commercial and industrial energy storage systems (reducing electricity costs and improving power supply stability)
Integrated photovoltaic-energy storage and wind-energy storage systems
Backup power for data centers and communication base stations
Electric vehicle battery swapping stations and charging stations.
Its stability and high safety make it an important component of the digital and intelligent future of energy.
Liquid-cooled battery energy storage packs are energy storage products that utilize liquid circulation for heat dissipation, achieving efficient, safe, and stable operation. With its high safety, long lifespan, and high performance, it is becoming one of the most important energy storage solutions in the new energy industry.
3. Why are more and more manufacturers choosing liquid-cooled energy storage solutions?
With the rapid growth of the new energy industry and the continuous expansion of energy storage application scenarios, battery safety, system efficiency, and lifespan have gradually become the core concerns of the industry. Especially in high-power, high-energy-density applications such as large-scale energy storage power stations, industrial and commercial energy storage, and photovoltaic-energy storage integration, traditional air-cooled energy storage solutions can no longer meet higher performance requirements. As a result, liquid-cooled energy storage solutions have rapidly emerged and become the mainstream choice for many energy storage equipment manufacturers. So, why are more and more manufacturers choosing liquid-cooled energy storage solutions? What are the industry logic and technology drivers behind this?
(1) The criticality of thermal management determines the safety upper limit of the energy storage system
The most commonly used batteries in energy storage power stations are lithium iron phosphate batteries and ternary lithium batteries. These two types of batteries continuously generate heat during charging and discharging. If heat cannot be dissipated in time, it will lead to:
Continuous increase in battery temperature
Increased internal resistance
Imbalance in chemical reactions
Shortened battery life
Most dangerously, it may cause thermal runaway or even a safety accident.
Air cooling relies on airflow for cooling, but air has extremely low thermal conductivity and limited heat dissipation capacity, especially in energy storage compartments with densely stacked batteries, where heat is not easily dissipated. When the system scales up to the megawatt level, the pressure on thermal management will multiply.
In contrast, liquid cooling uses coolant to directly contact the battery modules for heat transfer, and the heat dissipation rate is dozens of times faster than air. Therefore, more and more manufacturers realize that thermal management has become the lifeline of energy storage systems, and liquid cooling is a more efficient and reliable solution.
(2) Liquid cooling makes large-scale energy storage systems safer
The energy storage industry is rapidly expanding, and large power plants are frequently connected to the grid, thus placing higher demands on safety. Air-cooled systems have poor temperature equalization capabilities, often resulting in large temperature differences between modules and localized overheating. For large-capacity energy storage, this is a potential safety hazard.
Liquid cooling technology offers the following advantages:
Smaller temperature difference: Liquid cooling can stably control the cell temperature difference within 3℃, far superior to the 8–15℃ temperature difference of air-cooled systems. Higher temperature consistency results in more uniform battery degradation and higher safety.
Faster temperature control response: When the battery temperature rises abnormally, liquid cooling can quickly remove heat, preventing localized overheating accumulation.
Supports full lifecycle safety monitoring: The liquid cooling system is linked with the BMS (Battery Management System) to achieve: real-time temperature monitoring, automatic adjustment of coolant flow, and early fault warning. These are all precise temperature control capabilities that air-cooled systems cannot achieve.
Therefore, the liquid cooling solution, with its higher safety and better temperature uniformity, has naturally become the preferred choice for large-scale energy storage projects.
(3) Improved battery life and reduced energy storage lifecycle costs
Battery costs account for more than 50% of the total cost of an energy storage system, and the lifespan directly determines the system's economic viability.
Problems with air-cooled solutions: Large temperature differences lead to inconsistent cell degradation, resulting in higher maintenance and replacement costs. Advantages of liquid cooling: High temperature uniformity, making the degradation rate of each cell more consistent, extending battery life by 20%~40%. Reduces premature battery module failure, lowering maintenance difficulty and frequency.
When the scale of energy storage systems reaches the MWh or GWh level, the cost advantage brought by the extended lifespan is considerable. This is why manufacturers are more willing to use liquid cooling technology, which has a longer lifespan and lower subsequent costs.
(4) Liquid cooling is more suitable for high energy density and high power energy storage systems
With the growth of energy storage demand, various energy storage devices are developing towards "smaller size and larger capacity".
Under this trend, air-cooled systems are gradually showing their shortcomings:
Complex air duct design
Difficulty in covering compact spaces with airflow
Inadequate heat dissipation during high-power charging and discharging
Liquid cooling systems are perfectly suited to this development direction.
Liquid cooling offers several advantages: High-efficiency heat exchange, small footprint, support for higher power density, and applicability to high-rate, high-current scenarios.
Therefore, liquid cooling is more advantageous for applications such as containerized energy storage, rack-mounted energy storage, power station energy storage, and energy storage for electric vehicle battery swapping stations and charging stations. Manufacturers choose liquid cooling solutions largely to align with the development trend of "high power, high density, and high integration" in energy storage systems.
(5) Liquid cooling systems are more intelligent and suitable for future energy storage development
The energy storage industry is moving towards intelligence and digitalization, and liquid cooling systems seamlessly fit this trend.
The addition of temperature sensors, flow sensors, pressure sensors, and algorithm models to liquid cooling solutions enables the system to: Automatically regulate cooling speed, intelligently predict temperature changes, optimize energy consumption, and achieve remote monitoring and diagnosis.
With the application of AI, battery health management (BHM), and big data platforms, liquid cooling systems can achieve: Early fault warning, automatic adjustment of the optimal temperature zone, lifespan curve calculation, and optimal operating costs. In contrast, air-cooled solutions struggle to achieve such refined intelligent management; therefore, the trend towards intelligence accelerates the popularization of liquid cooling solutions.
(6) The cost of liquid cooling systems is rapidly decreasing, lowering the industry entry barrier
In the early days, liquid cooling solutions were indeed more expensive and structurally more complex, so air cooling became the mainstream. However, with technological maturity and supply chain scaling, the cost of liquid cooling systems has decreased significantly:
Standardized production of liquid cooling plates
Modularization of coolant circulation systems
Increased integration of control systems
Economies of scale brought about by the rapid expansion of demand in the energy storage industry
Currently, the cost gap between liquid cooling and air cooling has narrowed considerably, while the performance advantages are becoming increasingly apparent.
Manufacturers' selection logic has become clear: A small increase in cost yields significantly higher safety and lifespan returns, making it a very worthwhile choice.
4. How does a liquid-cooled battery pack achieve both high efficiency and safety?
In today's rapidly developing energy storage and new energy industry, the safety and efficiency of battery systems have become the core focus of the industry. Whether it's large-scale grid-side energy storage power stations, industrial and commercial energy storage systems, or electric vehicle charging and swapping stations and outdoor energy equipment, a stable, efficient, and reliable battery pack is essential. Liquid-cooled battery packs have rapidly emerged in this context, becoming the mainstream energy storage temperature control solution. So, how exactly does a liquid-cooled battery pack achieve both high efficiency and safety?
(1) The core value of a liquid-cooled battery pack: Temperature control determines performance and safety
Batteries generate a large amount of heat during charging and discharging. If this heat cannot be dissipated in time, it will not only reduce efficiency but may also cause safety hazards. Industry data shows that more than 80% of battery failures are related to temperature runaway, while traditional air-cooled systems, due to the weak thermal conductivity of air, are unable to meet the heat dissipation requirements of high-energy-density applications.
Liquid-cooled battery packs directly remove heat from the battery through circulating coolant, offering heat exchange capabilities dozens of times stronger than air-cooled systems, thus maintaining a stable and balanced battery operating temperature. This temperature control capability is the foundation for achieving "high efficiency + safety."
(2) How does the liquid-cooled battery pack achieve efficient heat dissipation?
The design principle of the liquid cooling system can be summarized in four words: rapid heat transfer. Its core structure includes:
Liquid cooling plate in close contact with the battery module: The cooling channels in the liquid cooling plate are close to the battery, rapidly absorbing heat through the high thermal conductivity of the metal material.
Coolant circulation removes heat: A circulating pump drives the coolant flow, transferring heat from the battery to the heat exchanger.
Efficient heat dissipation by the heat exchanger: The heat exchanger further dissipates heat through air or liquid, allowing the coolant to cool down again.
Intelligent temperature control system: Temperature sensors and the control system monitor the battery temperature in real time and automatically adjust the coolant flow rate and speed. Through this closed-loop mechanism of "heat absorption → heat transfer → heat dissipation → circulation," the liquid cooling system ensures that the battery always operates within its optimal temperature range (typically 20–35℃), guaranteeing stable and reliable performance output.
(3) How does liquid cooling technology improve battery efficiency?
Efficiency improvement is mainly reflected in three aspects:
Improved temperature stability enhances charge and discharge efficiency. The chemical reaction rate of a battery is directly related to temperature. Excessive temperature leads to excessively fast reactions and increased internal resistance, while excessively low temperatures reduce discharge performance. The liquid cooling system keeps the battery within its optimal performance range, allowing for more efficient energy conversion.
Rapid cooling avoids power limitations. In high-power applications (such as peak discharge and fast charging), heat buildup limits battery output. The liquid cooling system can quickly dissipate heat, allowing the battery to maintain high power output continuously.
Small temperature difference improves system consistency. The liquid cooling system can control the temperature difference between cells to within 3℃, significantly better than the 8–15℃ of air cooling. Better consistency results in higher overall system efficiency and more uniform degradation.
In summary, liquid-cooled battery packs keep the battery in optimal condition, achieving higher energy utilization and more stable performance output.
(4) How do liquid-cooled battery packs achieve higher safety?
Compared to air-cooled solutions, liquid-cooled solutions have significant advantages in safety. Key reasons include:
More precise temperature control, reducing the risk of thermal runaway.
Thermal runaway is often caused by localized high temperatures, while liquid-cooled systems can quickly remove localized heat, preventing temperature buildup.
Comprehensive temperature monitoring system.
Liquid-cooled systems typically include:
Multi-point temperature sensors
Coolant temperature monitoring
Flow and pressure monitoring
Deep integration with the BMS.
These enable the system to provide early warnings of temperature anomalies, allowing for preventative measures before a failure occurs.
5. How to Maintain a Liquid-Cooled Battery Energy Storage System?
Liquid-cooled battery energy storage systems, with their efficient, stable, and safe temperature control performance, have become the mainstream technology in large-scale energy storage projects, industrial and commercial energy storage, grid-side energy storage, and integrated photovoltaic-energy storage systems. However, even with the excellent heat dissipation capabilities of liquid-cooled systems, daily maintenance remains crucial. Good maintenance not only ensures long-term stable operation of the system but also extends battery life, reduces operation and maintenance costs, and enhances the overall value of energy storage assets. So, how to properly maintain a liquid-cooled battery energy storage system?
(1) Daily Monitoring: Keeping the System in a Controllable State
The core of liquid-cooled energy storage is the temperature control system, therefore, it is necessary to maintain real-time monitoring of key system parameters. This mainly includes:
Temperature Monitoring
Regularly check the battery module temperature
Ensure that the cell temperature difference remains within the allowable range (usually ≤ 3–5°C)
Check for localized heating or abnormal hot spots
Temperature stability is directly related to battery life and safety and should be the most important daily inspection item.
Coolant temperature, pressure, and flow rate
Is the temperature difference in the coolant supply circuit normal?
Is the flow rate stable?
Are there any abnormal pressure fluctuations? Insufficient flow or low pressure may be a signal of pipe blockage, leakage, or pump failure.
System alarm records
Regularly check BMS, EMS, and liquid cooling controller alarms
Promptly handle abnormal temperatures, flow alarms, and sensor errors
Early detection and handling through software monitoring is the most effective maintenance method.
(2) Liquid cooling system maintenance: Key steps to ensure cooling performance
Maintenance of liquid-cooled energy storage systems focuses on the following aspects:
Coolant maintenance and replacement
Long-term use of coolant may lead to degradation, contamination, and concentration changes. Therefore, it is necessary to:
Regularly check the coolant level
Ensure the coolant concentration and ratio meet requirements
Replace the coolant according to the manufacturer's recommendations (usually every 1-2 years)
Using non-compliant liquids will affect heat exchange efficiency and may even corrode pipes.
Check for leaks in the liquid cooling system. Leaks in the liquid cooling system can lead to: Decreased cooling efficiency; Pump idling and potential short-circuit risk. Regular checks are required to address: Loose connections; Cracks in the aging pipes; Coolant seepage.
(3) Cleaning and Condition Inspection of the Liquid Cooling Plate. Scale buildup, blockages, or poor contact in the liquid cooling plate directly affect heat dissipation efficiency. Check for: Unobstructed coolant flow channels; Smooth and tight contact with the battery module; Corrosion or deformation.
Circulating Pump Inspection. The circulating pump is the core power component of the liquid cooling system and requires regular inspection to address: Abnormal noise; Stable flow and pressure; Vibration and leakage. Repair or replace if necessary.
(4) Battery Module Maintenance: Key to Extending Battery Life. Although the liquid cooling system significantly reduces battery degradation, necessary module maintenance is still essential.
Check cell consistency: Individual cell voltage difference; Temperature consistency; Internal resistance trend. If the difference is too large, equalization should be performed or the module should be replaced. Cleaning and Dust Removal
Keeping the battery compartment clean reduces system heat and dust damage to electronic components.
Fixed Component Inspection
Ensure module mounting components are secure to prevent vibration-induced poor contact.
(5) Environmental Maintenance: External Factors Determining Long-Term System Stability
Maintain Good Ventilation in the Energy Storage Compartment:
Although it is a liquid-cooled system, adequate airflow within the compartment reduces overall heat dissipation pressure.
Avoid Extreme Environmental Impacts:
Avoid direct sunlight in high-temperature areas.
Antifreeze measures are required in cold regions.
Strengthened sealing and protection are necessary in humid or corrosive environments.
6. Frequently Asked Questions about Liquid-Cooled Battery Energy Storage Packs
With the rapid development of the new energy industry, energy storage systems are gradually becoming a key hub in the energy structure. Among numerous energy storage technologies, liquid-cooled battery energy storage packs are becoming the industry mainstream due to their high heat dissipation efficiency, high safety, long lifespan, and suitability for large-scale energy storage projects. This article will answer the most frequently asked questions from multiple dimensions, including principles, performance, applications, installation, maintenance, and safety.
(1) Basic Concepts FAQs
Q1. What is a liquid-cooled battery energy storage pack?
A liquid-cooled battery energy storage pack is an energy storage product that uses liquid cooling to manage battery temperature. Batteries generate a large amount of heat during operation, especially in high-current, high-power charging and discharging scenarios. Heat accumulation can lead to decreased battery performance and even safety risks. The liquid cooling system uses coolant circulating inside pipes to quickly remove heat, achieving highly precise temperature control and allowing the battery to operate within its optimal temperature range, improving system safety and lifespan.
Q2. Why is battery temperature control necessary? Lithium-ion batteries are highly sensitive to temperature. Excessively high temperatures accelerate battery degradation and significantly increase the risk of thermal runaway; excessively low temperatures reduce charging and discharging efficiency, and may even prevent charging altogether. Maintaining the battery within a uniform and stable temperature range is crucial for ensuring the sustainable and safe operation of energy storage systems. Liquid cooling technology was developed to improve temperature control accuracy, reduce temperature differences, and enhance heat dissipation efficiency.
Q3. What is the difference between liquid cooling and air cooling?
Liquid cooling uses a coolant to achieve directional heat dissipation, while air cooling relies solely on airflow. Liquid cooling offers faster heat dissipation, better temperature uniformity, and higher safety, making it suitable for large-scale energy storage systems. Air cooling, while relatively inexpensive, suffers from uneven temperature control and is more suitable for small-scale energy storage. As energy storage sites expand, liquid cooling is increasingly replacing air cooling as the mainstream solution.
Q4. What is the coolant in a liquid cooling system? Is it dangerous?
The coolant is generally a mixture of ethylene glycol and water, possessing excellent thermal conductivity, non-flammability, low volatility, corrosion resistance, and freeze resistance. Its electrical conductivity is extremely low, so leaks will not immediately cause a short circuit. Most coolants are highly safe, similar to vehicle coolants, and are not classified as hazardous materials.
(2) FAQs Regarding Working Principles
Q5. How does a liquid cooling system cool the battery?
The core of a liquid cooling system consists of a liquid cooling plate, coolant, water pump, heat exchanger, and controller. When the battery generates heat during operation, the heat is transferred to the coolant through the contact between the battery module and the liquid cooling plate. The coolant circulates under the drive of the water pump, carrying away the heat and transferring it to the heat exchanger, where it is then dissipated through air or cooling equipment. The entire system forms a continuous heat exchange cycle, keeping the battery within a healthy temperature range.
Q6. What is the function of the liquid cooling plate?
The liquid cooling plate is directly attached to the battery module and is a key component for heat transfer. Its internal precision flow channel design allows the coolant to evenly contact the heat dissipation surface, achieving efficient heat dissipation and minimal temperature difference control. The performance of the liquid cooling plate determines the heat dissipation quality of the liquid cooling system and the battery life.
Q7. Does a liquid cooling system require intelligent control?
Yes. Liquid cooling systems are typically integrated with battery management systems (BMS). When the temperature rises, the system automatically increases coolant flow, adjusts valve positions, and activates booster modes to achieve precise temperature control. Intelligent control not only improves efficiency but also provides timely alarms or shutdowns in abnormal situations, ensuring safety.
(3) Performance Advantage FAQs
Q8. What are the core advantages of liquid-cooled energy storage packs?
The main advantages of liquid-cooled energy storage packs include:
More precise temperature control, with temperature differences between batteries controlled within 3°C;
Faster heat dissipation feedback, capable of handling high-power applications;
Improved battery cycle life, extending lifespan by 20%–40%;
Safer operation, reducing the risk of thermal runaway;
Higher energy density, allowing for a more compact system;
Lower noise, suitable for industrial and commercial applications.
Q9. Does a liquid cooling system consume electricity? Will it reduce energy storage efficiency?
A liquid cooling system does consume some energy for pump operation and heat exchange. However, the overall energy consumption is very low, generally 1%–3% of the energy storage system's total energy. Compared to the improved safety and extended lifespan it brings, this energy consumption is entirely within acceptable limits.
Q10. Will the noise from a liquid cooling system affect its use?
The noise from a liquid cooling system mainly comes from the water pump and fan, and is generally lower than that of an air-cooled system. Because liquid cooling has high heat dissipation efficiency, the fan does not need to operate at high speed, resulting in lower overall noise, making it suitable for noise-sensitive areas such as factories and commercial buildings.
(4) Application Scenarios FAQ
Q11. Which scenarios are suitable for using liquid-cooled energy storage packs?
Liquid-cooled energy storage packs are suitable for all scenarios with high requirements for heat dissipation, safety, and lifespan, including:
Large-scale grid-side energy storage power stations;
Industrial and commercial energy storage;
Photovoltaic energy storage, wind power energy storage;
Microgrid systems;
Data center backup power;
Fast charging stations, battery swapping stations energy storage;
Energy storage deployment in high-temperature or extremely cold environments.
Q12. Does residential energy storage require liquid cooling?
Usually not. Residential energy storage is small in size, low in power, and generates little heat; air cooling is sufficient. Liquid cooling systems are more suitable for large-capacity energy storage systems ranging from 50kWh to MWh.
Q13. Is liquid-cooled energy storage suitable for high-temperature regions?
Very suitable. Liquid cooling systems can maintain stable temperature control in high-temperature regions, performing particularly well in high-temperature environments such as deserts, power plants, and container cabins. In extreme heat, it can also work in conjunction with air conditioning.
Q14. Can liquid cooling systems work in cold regions?
Yes. The coolant has antifreeze properties, and the liquid cooling system can maintain fluidity at low temperatures. It can also raise the battery pack temperature through temperature control strategies, enabling the system to operate normally in environments tens of degrees below zero.
(5) Installation and Usage FAQs
Q15. What should be noted when installing a liquid-cooled energy storage pack?
During installation, ensure:
Good ventilation and no obstructions in the site;
A firm, waterproof, and dustproof equipment base;
Tight and leak-proof coolant piping connections;
Standardized wiring for communication and power lines;
Ambient light, wind, and rain should not directly contact the battery pack;
Comprehensive commissioning should be performed after system installation, including flow rate, pressure, and temperature tests. Proper installation can significantly reduce later failures and improve safety.
Q16. Can liquid-cooled energy storage packs be installed outdoors?
Most liquid-cooled energy storage products adopt containerized or rack-mounted designs and can be directly deployed outdoors. However, environmental protection measures are necessary, such as sunshades, rain shelters, moisture-proof foundations, and lightning protection devices.
Q17. Does the liquid-cooled system need to be refilled after installation?
Some systems come pre-filled with coolant, while others require on-site addition. Coolant must be added according to the manufacturer's required concentration and ratio. After adding coolant, an air purging step must be performed to ensure there are no air bubbles in the system, maintaining good flow channels.
(6) Maintenance FAQs
Q18. How often should the coolant in a liquid-cooled system be changed?
It is generally recommended to change it every 1-2 years. In high-temperature environments and long-term high-power operation scenarios, the replacement cycle can be appropriately shortened. If the coolant is found to be cloudy, discolored, or contains impurities, it must be replaced immediately.
Q19. When should the liquid-cooled piping be inspected? The following situations require immediate inspection:
Abnormal rise in battery temperature;
System alarm indicating decreased flow rate;
Coolant pressure fluctuations;
Liquid traces on the ground;
Abnormal pump noise or significant vibration.
Regular inspections can prevent safety hazards caused by prolonged small leaks.
Q20. Will the water pump in the liquid cooling system be damaged?
The water pump is a high-load operating component and may wear down after long-term operation. Its general lifespan is tens of thousands of hours or more, and it can be replaced if necessary. Regular monitoring of noise, flow rate, and temperature can detect signs of pump aging in advance.
Q21. Does the liquid cooling system need cleaning?
Yes. Deposits or scale in the coolant will reduce heat exchange efficiency. The cleaning cycle depends on the operating environment and coolant quality; a complete cleaning is recommended every 1-2 years.
(7) Safety FAQs
Q22. Will a leak in the liquid cooling system cause a short circuit?
No, it will not cause an immediate short circuit. The coolant has extremely low conductivity and is much safer than pure water. The battery compartment also has leak detection and alarm functions; the system will automatically shut down upon detecting a risk. Leakage incidents are extremely rare when maintained according to specifications.
Q23. Can liquid-cooled energy storage experience thermal runaway?
Any lithium battery system carries a theoretical risk, but liquid cooling significantly reduces the probability. With precise temperature control, uniform heat dissipation, and intelligent protection mechanisms, liquid cooling effectively suppresses the spread of thermal runaway, making it one of the safest energy storage temperature control methods currently available.
Q24. What happens if the liquid-cooled system loses power?
The system will stop circulating, but as long as the battery temperature does not continue to rise, there will be no immediate danger. If operating at high power, the BMS will automatically reduce power or stop operation to ensure the battery temperature does not continue to rise.
Q25. What fire prevention measures are available for liquid-cooled energy storage?
These typically include: smoke and temperature sensor monitoring; gas extinguishing systems (such as sulfur hexafluoride, inert gases); electrical safety measures such as fuse protection and current limiting; and independent thermal insulation design for the storage compartment.
(8) Procurement and Selection FAQs
Q26. What indicators should be considered when selecting a liquid-cooled energy storage pack? Including but not limited to: Temperature difference control capability; Battery type (e.g., lithium iron phosphate); Energy density; Advanced liquid cooling structure design; Coolant durability; BMS intelligence level; System safety certification; System lifespan and warranty service; EMS compatibility.
Q27. Is liquid-cooled energy storage more expensive than air-cooled storage?
While the initial equipment cost is indeed higher, liquid cooling offers significant advantages over long-term operation: Longer battery life; Fewer failures; Lower risk of safety incidents; Lower maintenance costs.
The overall lifecycle cost is actually more advantageous.
Liquid-cooled battery energy storage packs, with their multiple advantages such as safety, reliability, high efficiency, and long lifespan, are becoming a core technology trend in the energy storage industry. Through a thorough understanding of the fundamentals, operating mechanisms, safety strategies, maintenance methods, and application scenarios of liquid-cooled systems, users can more scientifically evaluate, use, and manage this advanced energy storage technology.
