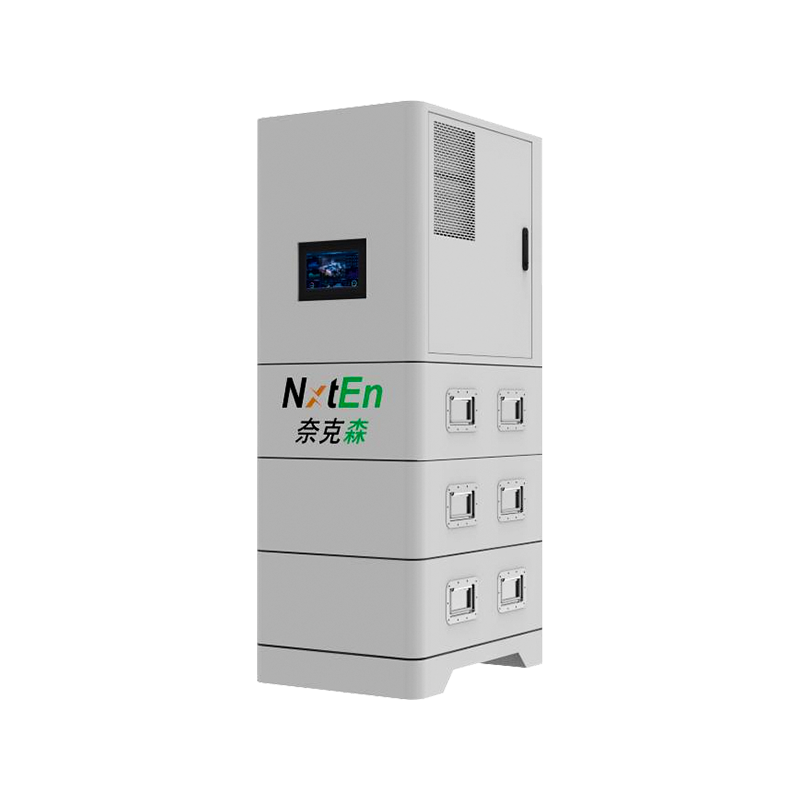

Off-Grid Hybrid Energy System (Wind-Solar-Diesel-Storage Integration)

An off-grid hybrid energy system is an independent microgrid solution for areas without electricity, areas with low voltage, and scenarios with extremely high requirements for power supply reliability. It organically combines multiple energy forms such as solar photovoltaic, wind power, large-capacity battery energy storage, and diesel generators, all coordinated and controlled by a core intelligent hybrid energy manager. This achieves continuous, stable, and efficient power supply without relying on the public power grid. Off-grid hybrid energy systems not only possess flexible energy dispatch capabilities but also optimize power generation structure and energy storage strategies through intelligent algorithms, effectively responding to weather changes, load fluctuations, and emergencies. It is an indispensable and important technological form in modern distributed energy systems.

In practical applications, the system's primary function is to ensure a stable 24-hour power supply. Solar photovoltaic and wind power, as clean energy sources, are the system's basic power sources. During the day, when there is sufficient sunlight or good wind, they can directly supply power to the load and charge the battery storage. When unfavorable natural conditions lead to insufficient renewable energy output, the large-capacity battery pack automatically supplements power to maintain load operation. In extreme cases such as continuous rain, lack of wind, or insufficient battery power, the system automatically starts the diesel generator to avoid power outages. The entire process requires no manual intervention; the start-up, shutdown, and switching of all energy sources are automatically decided by the hybrid energy manager based on real-time load, weather data, and battery status, ensuring continuous and secure power supply.

As a highly intelligent system, its advantages lie not only in power supply stability but also in energy efficiency. Through multi-source complementarity, the system maximizes the use of renewable energy, reducing the operating frequency of diesel engines and thus lowering fuel consumption and maintenance costs. Simultaneously, the intelligent manager dynamically optimizes energy allocation strategies by analyzing energy output patterns and load curves, maximizing clean energy utilization and minimizing system losses. For remote areas, high-altitude mountainous regions, islands, communication base stations, border outposts, agricultural facilities, and temporary construction sites where access to the public power grid is difficult, it provides a more economical and environmentally friendly long-term stable power supply solution than traditional single-energy devices.

The off-grid hybrid energy system also demonstrates its reliability and applicability in its structural design. The system adopts a modular architecture, allowing for flexible configuration of photovoltaic capacity, wind turbine model, battery pack size, and backup diesel engine power according to actual application needs, ensuring optimal performance in various scenarios. Simultaneously, its strong scalability enables the system to be upgraded in capacity as business grows, reducing initial construction costs. The battery energy storage section typically uses high-safety lithium-ion batteries or long-life lead-carbon batteries, equipped with a comprehensive battery management system (BMS) to achieve real-time monitoring of parameters such as temperature, voltage, and current, ensuring battery operation within safe ranges and extending lifespan.

Furthermore, by increasing the proportion of photovoltaic and wind power, the wind-solar-diesel-storage system reduces the use of fossil fuels, lowering not only carbon dioxide emissions but also noise and air pollution from diesel engine operation, aligning with sustainable development trends. Its clean, low-carbon, and intelligent characteristics make it an ideal choice for modern microgrids, rural electrification, and off-grid energy construction.

Ningbo Nxten Energy Technology Co., Ltd. is a professional manufacturer of off-grid hybrid energy systems. Our off-grid hybrid energy systems represent an important shift in off-grid power supply from the traditional "single energy dependence" to "multi-source complementarity and intelligent optimization," laying a solid foundation for future energy independence, the popularization of green energy, and the construction of smart microgrids.
